Solar Energy
Hybrid Home Solar System

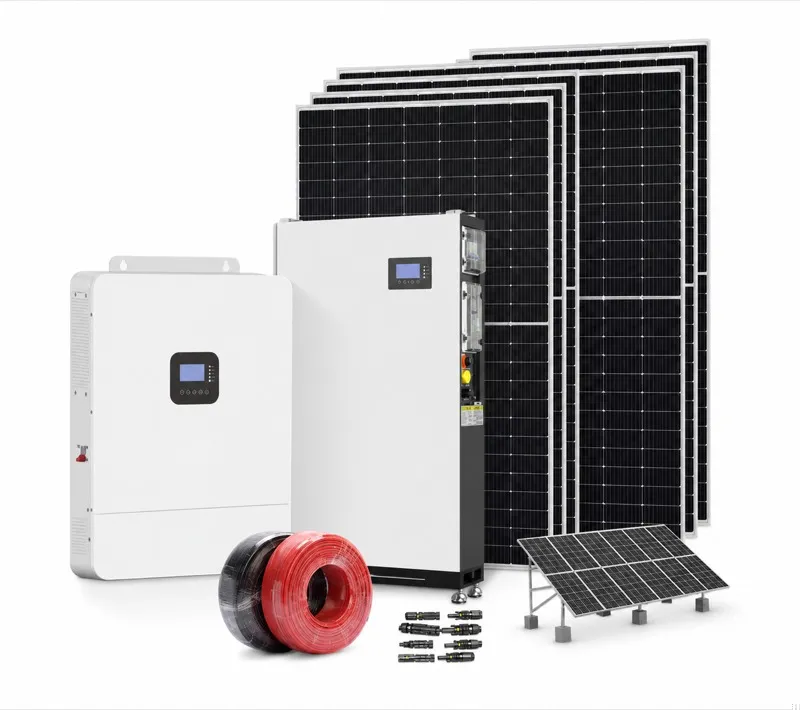

A 10 kW hybrid solar system uniting twelve 580W panels, a split-phase MPPT hybrid inverter and a 200Ah lithium battery for solar self-use, backup power and grid export.
A complete system, one order
A complete solar kit bundles matched panels, a hybrid inverter, lithium battery storage and mounting into one system sized to your home. Everything is engineered to work together, so installation is faster and there is no guesswork pairing components.
On-grid, off-grid and hybrid configurations cover self-consumption, backup and full energy independence, with split-phase 120/240V output for the Americas. OCALWA ships complete kits from one verified factory, sized and documented for your project.
Key features
Specifications
| System size | 10 kW |
|---|---|
| Inverter | 120V/240V split-phase hybrid, 48V, WiFi, IP65 |
| Controller | MPPT |
| Battery | 48V 200Ah lithium (~10 kWh) |
| Battery cycles | 6000 cycles, 80% DOD |
| Solar panels | 580W monocrystalline x 12 |
| Output | 120/240V split, 208V (2/3 phase), 230V (single) |
| Frequency | 50/60 Hz |
| Mounting | Galvanized aluminium, hurricane/salt resistant |
| Daily generation | ~25 kWh per 4 sunny hours |
| Expandability | Expandable |
Configurations & options
Voltage, power rating, battery capacity and configuration are matched to your project, grid and climate. Send us your load, backup and site details and we will size the right system.
Why choose a complete kit
No matching headaches
Panels, inverter and battery are pre-matched and warranted to work as one system.
Faster install
One documented kit means fewer site decisions and a quicker, cleaner installation.
Room to grow
Battery capacity and panels can be expanded later as your needs increase.
Ready to import at container scale?
Frequently asked questions
Off-grid suits sites with no reliable grid; hybrid suits homes with grid that want backup and bill savings; on-grid maximises self-consumption and export. We size the kit to your load and goal.
Yes. Send your monthly kWh, essential loads and backup hours needed, and we will specify panel count, inverter size and battery capacity.
As a rough guide each 580W panel needs about 2.6 m²; a 10 kW kit of twelve panels needs roughly 30-35 m² of unshaded roof or ground. We confirm the exact layout for your site.
The kit ships with wiring diagrams and documentation for a local certified installer; we provide remote technical guidance and can advise on sizing, mounting and commissioning.
Yes. We consolidate matched inverters, batteries, panels and balance-of-system from one verified factory into full containers, with export documentation, certification and quality control managed by OCALWA.
